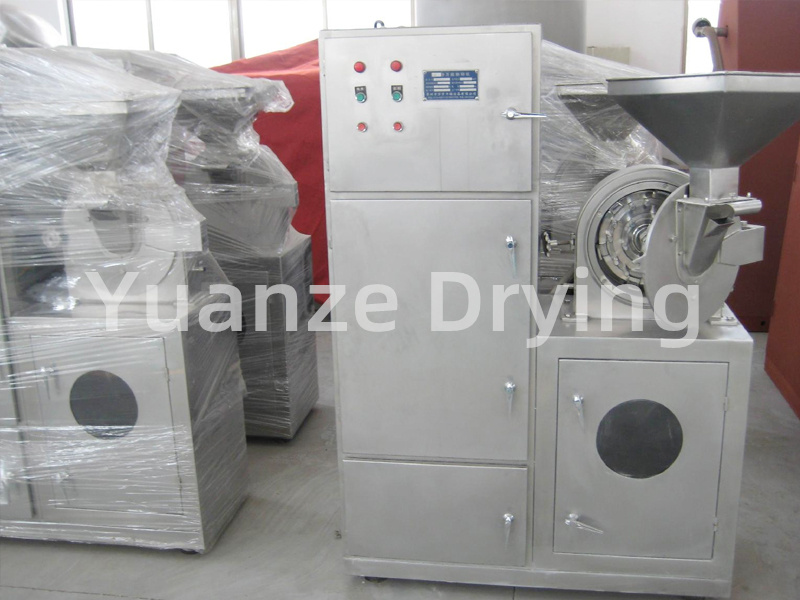

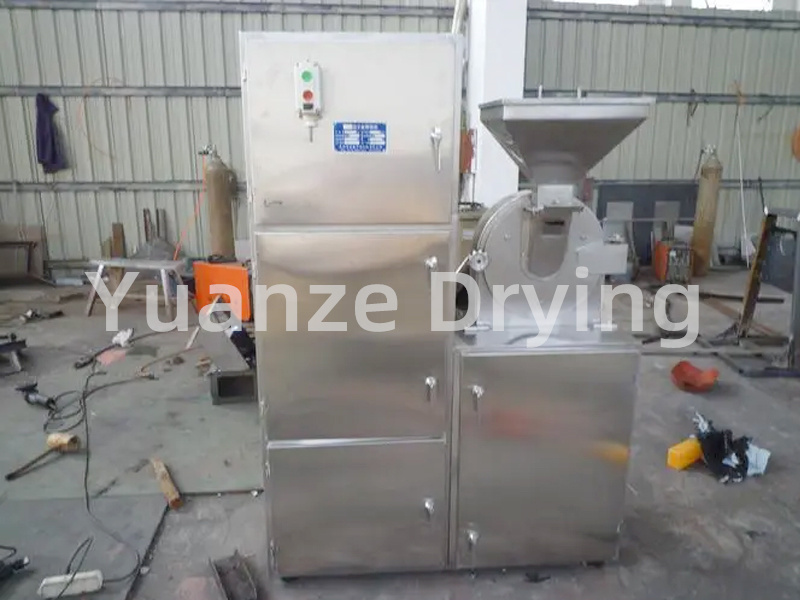

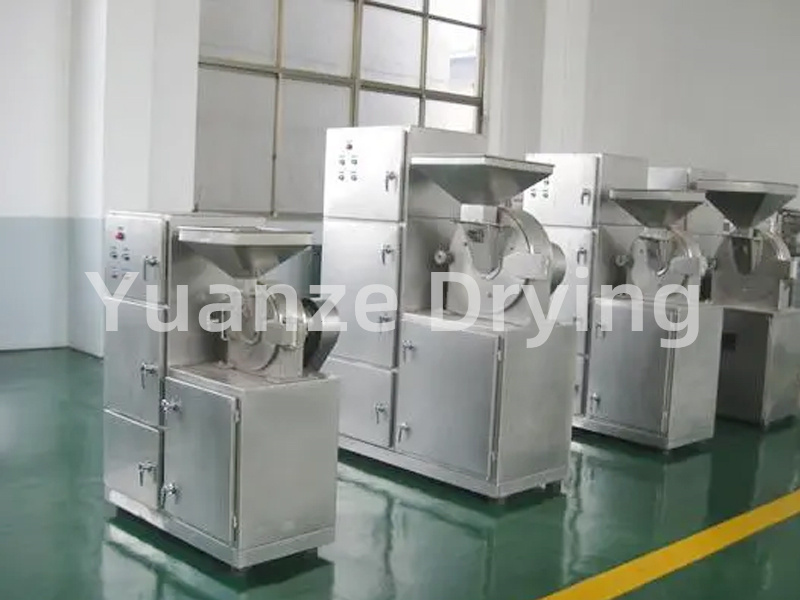

30B-X series universal crusher
30B-X series universal crusher
Description
1. This machine is suitable for crushing brittle materials in industries such as pharmaceuticals, chemicals, food, and pesticides, and has a wide range of applications.
2. This machine utilizes the high-speed relative motion between the movable toothed disc and the fixed toothed disc to achieve crushing of the crushed material through a combination of tooth impact, friction, and material impact with each other.
3. This machine is suitable for crushing brittle materials in industries such as pharmaceuticals, chemicals, food, and pesticides, and has a wide range of applications.
4. This machine utilizes the high-speed relative motion between the movable toothed disc and the fixed toothed disc to achieve crushing of the crushed material through a combination of tooth impact, friction, and material impact with each other.
| model | 20B | 30B | 40B | 60B |
| Production capacity (kg/h) | 60-150 | 100-300 | 160-800 | 500-1500 |
| Spindle speed (r/min) | 4500 | 3800 | 3400 | 2800 |
| Feed particle size (mm) | 6 | 10 | 12 | 15 |
| Finished product fineness (mesh) | 60-120 | 60-120 | 60-120 | 60-120 |
| Motor power (kW) | 4 | 5.5 | 11 | 15 |
| Weight (kg) | 250 | 320 | 550 | 680 |
| External dimensions (length × wide × Height (mm) | 350×600×1250 | 600×700×1450 | 800×900×1550 | 1000×900×1680 |
