Description

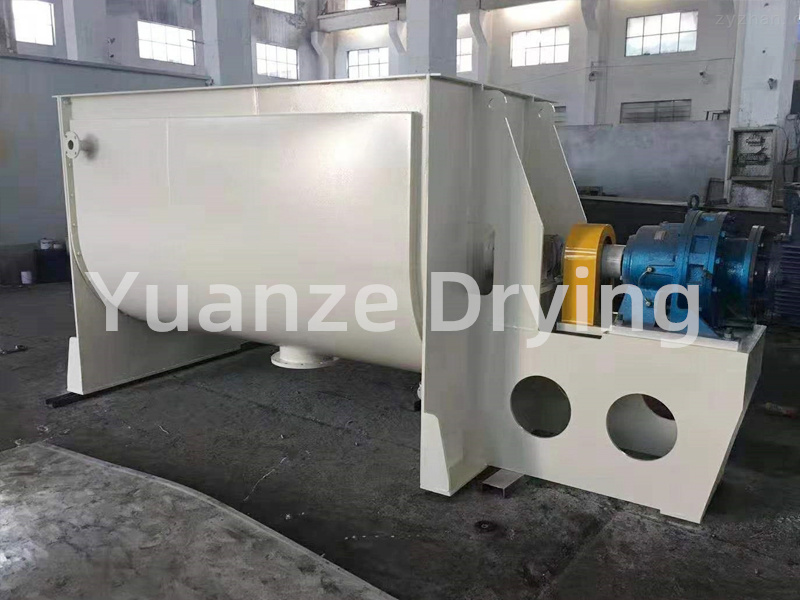

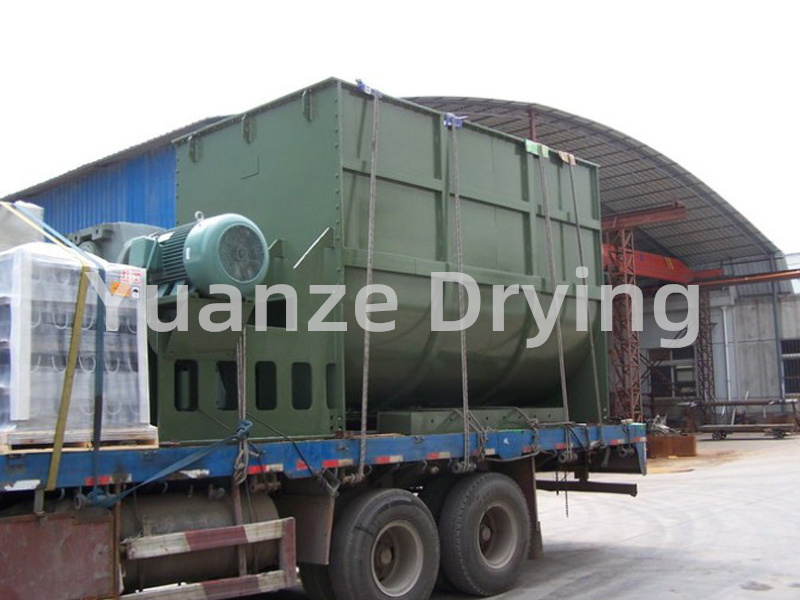

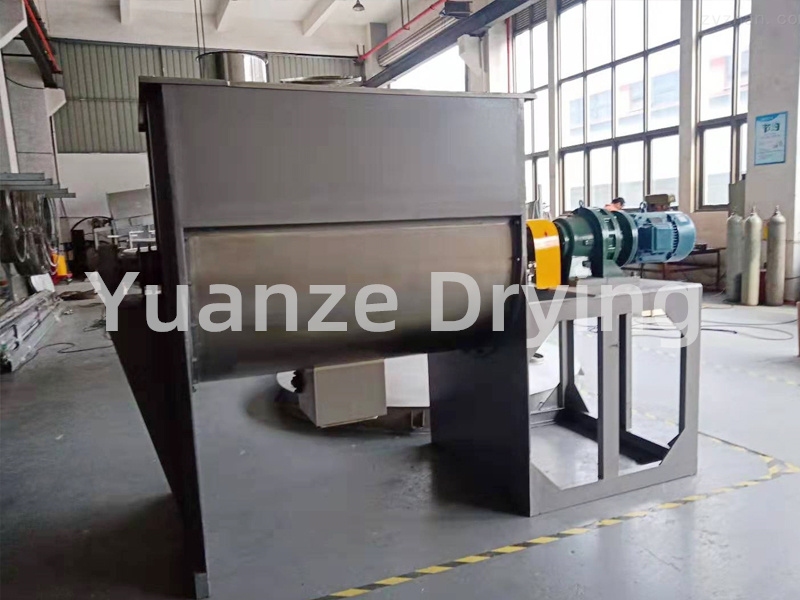

The horizontal spiral belt mixer is driven by the inner and outer diameter screws installed on the mixing shaft to flip the material inside the barrel, causing the mixer to flip the material over a large range inside the barrel. On the structure of the agitator, the spiral is designed as an inner and outer, left and right opposite spiral. During the operation of the agitator, the inner spiral drives the material near the axis to rotate axially, pushing it from the inside to both sides. The outer spiral drives the material near the cylinder wall to rotate axially, pushing it from both sides to the inside. This causes the material to circulate and shear in the cylinder, achieving rapid and uniform mixing of the material in a short period of time.

1. Under the feasibility factor, the mixing effect of the horizontal spiral belt mixer is not affected by the size and density of particles, and it also has a good mixing effect on sticky materials.

2. The smooth mixing process reduces the damage to fragile materials, and the addition of a flying knife structure also plays a crushing role.

3. The horizontal structure has a lower body height and is easy to install.

4. In the mixing structure, the forward and reverse rotating screw bars are installed on the same horizontal axis, forming a low power and efficient mixing environment.

5. The horizontal screw belt mixer is mainly used for the production of putty powder and can also be used as an entry-level insulation mortar mixer.
